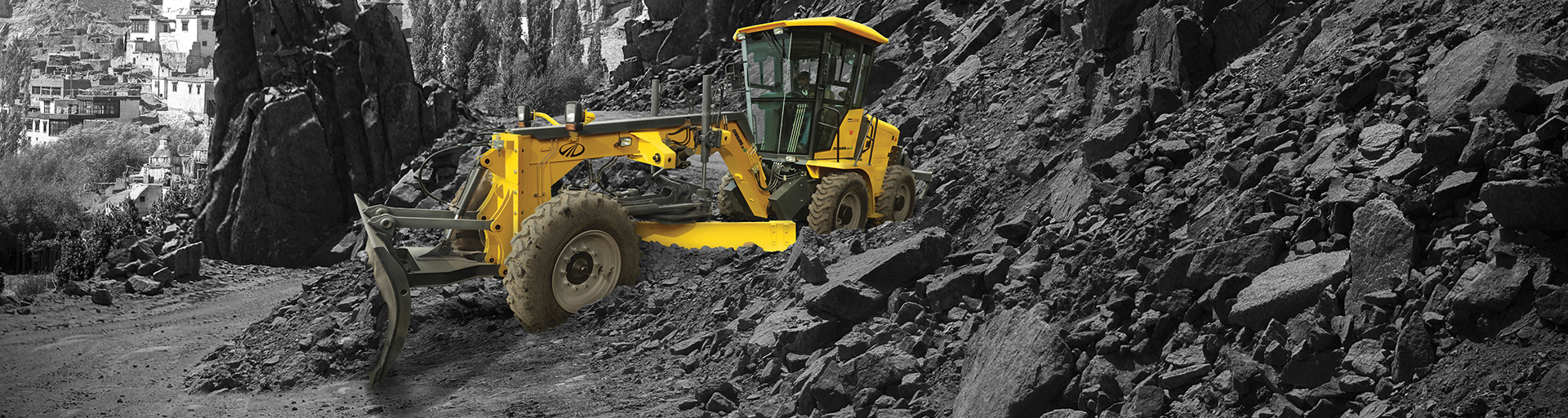

    Mahindra Motor Grader - RoadMaster G9595

    In a developing country like India, 75% of roads are either expansion projects or rural/semi urban plans where productivity is duly optimized. With a year-long, in-depth study of Indian roads and its infrastructure, 20 000+ days of product development, and 6000+ hours of extensive testing in various locations across the country, Mahindra RoadMaster G9595 is the most optimized machine to help build a developing India.

    HYDRAULICS


    New and improved hydraulic pump for smooth performance. Higher maximum pressure around 20 MPa for more power on blade. Bigger size of 26+26 cm3 gear pump for increased per-hour productivity.

    MOLDBOARD & BLADE RANGE


    Longer moldboard base length, increased support, less vibration, and blade length of 3000 mm for better quality work and finishing. Higher Rotation angle of around 50° fromthe transverse of the vehicle provides faster grading in heavy material. Blades easilyaccommodate between tyres while the machine is travelling. This helps in a smoothmachine movement.

    DAMPENING CYLINDER

    Ensures comfort in road marching and stops fluctuation during grading in final cut. Ensures more comfort to the operator and better finishing during the last cut of grading.

    CONVENIENCE & COMFORT


    Mahindra believes that the most important part of the machine is the person operating it. That’s why we have worked hard to make the operator experience comfortable for long hours of work. Ergonomic layout and seating – so that all controls are smooth and easy to reach. Including spacious canopy, lockable storage and mobile charging.

    FINAL DRIVE WITH DIFFERENTIAL LOCK


    100% Mechanical Differential Lock helps in higher power generation and equal distribution of motion in the rear tyres. Ensures better performance in grading and is useful on muddy, marshy soils. The machine does not get stuck anywhere.

    HEAVY DUTY DOZER BLADE


    Standard Attachment: The RoadMaster G9595 comes with the Standard Dozer Blade fitment. This adds power and efficiency in the grading process as the Dozer breaks the material stock in advance.

    • ENGINE

      Model Mahindra BS TREM IV CEV
      Form of Air Aspiration Turbo Charged
      No of Cylinders 4
      Bore 96mm
      Stroke 122 mm
      Displacement 3532cm3 (cubic centimetre)
      High idle rpm 2400+/-50 r/min
      Low ideal rpm 850+/-50 r/min
      Cooling system water cooled
      Type of fuel Diesel
      Gross horse power 69.9 kW (95hp) @ 2200±50 r/min
      Peak gross torque 401 Nm @ 1200-1500 r/min
      Electrical system voltage 12 V

    • Operating Specification

      Gross vehicle weight 9400±188
      FAW 2668±53
      RAW 6733±135
      Speed @ gear (kmph) Forward Reverse
      1st 4.5 to 6.0 5.5 to 7
      2nd 7.5 to 9.0 9.0 to 10.5
      3rd 16.5 to 18.5
      4th 33.0 to 36.5
      Turning radius outside tyre R1 10 m
      Steering angle inner wheel 45 °
      Steering angle outer wheel 32 °

    • Moldboard

      Base Length of MB 2600 mm
      Thickness of Moldboard 16 mm
      Blade Height H19 516 mm

    • Cutting Edge (Blade)

      Standard Length of Cutting Edge W8 2600 mm
      {3 piece cutting edge}
      {1100 + 1100 + 400}
      Standard length of cutting edge
      with side extension       		W8* 3000 mm
      {4 piece cutting edge}
      {1100 + 1100 + 400+ 400}
      Width of Cutting Edge 152 mm
      Thickness of Cutting Edge 16 mm

    • Dimensions (IN MM)

      Distance between mid & rear axle L9 1850 mm
      Distance between front & middle axle A 4300 mm
      Wheel Base L3 5225 mm
      Distance- Front axle to Moldboard
      Blade base      		 L12 1691 mm
      Transport length h - With Dozer L1 8594 mm
      Transport length h - With Dozer and Ripper L1' 8594 mm
      Ground Clearance below front axle beam H18 528 mm
      Minimum Ground Clearance H4 467 mm
      Max vehicle height H1 3290 mm
      Track width- Front W3F 1674 mm
      Track Width Rear W3R 1654 mm
      Width- outside front tires W1F 2021 mm
      Width- outside rear tires W1R 2001 mm

    • Blade Range

      Circle rotation angle AB 50° from transverse of vehicle
      Circle drive Hydraulic cylinders with no
      end mechanical stoppers
      Blade side shift (LH/ RH) W15 513 mm
      Blade tilt angle/ Bank cut angle
      (LH/RH) at ground level measured
      on blade      		 A9 20º / 15º
      Blade tilt angle/ Bank cut angle
      (LH/RH) at ground level measured
      on drawbar       		A9’ 25.6º / 20º
      Blade pitch angle at ground line A11 Forward     40º
      Backward     5º
      Blade without extension outside
      front tyre with blade positioned
      parallel to wheel axis       		W9 289.5mm
      Blade outside
      front tyre with blade positioned
      parallel to wheel axis      		 W9 489.5mm
      Blade lift at normal blade pitch angle H20 395 mm
      Max blade cut depth below ground at nominal blade angle D 300 mm
      Attachment oscillation angle E Upward     15°
      Downward     15°

    • End Bit

      Width C 200 mm
      Thickness 16 mm
      Blade Pull force (Kgs ) 27 kN
      Blade Down force (Kgs) 27 kN

    • Middle Axle

      Type Driven, Non Steerable, Rigid
      Reduction ratio, Differential 2.75
      Reduction Wheel end 6.932
      Total Reduction Ratio 19.04

    • Rear Axle

      Type Driven, Non Steerable, Central Pivoted
      Reduction ratio, Differential 2.75
      Reduction Wheel end 6.932
      Total Reduction Ratio 19.04

    • Tyres and Wheels

      Tyre Spec 13 x 24-12 PR
      SLR 600
      DLR 603
      Wheel Rim Size 9x24

    • Tyre Pressure

      Front / Middle / Rear 44 psi

    • Transmission

      Model Name Carraro 4WDTransmission
      Gear Ratios Forward / Reverse
      1st 5.603 / 4.643
      2nd 3.481 / 2.884
      3rd 1.585 / 1.313
      4th 0.793 / 0.657
      Torque converter ratio 2.64

    • Hydraulics

      System Open Centre
      Pump Type Fixed Displacement Tandem Gear Pump
      26 + 26 cm3 (cubic centimetre)
      Max Pump Flow rate 46 litres@ 2200 r/min
      Max Working pressure 20 Mpa
      Refill qty 50 litre
      System Capacity 60 litre
      Other Feature Load Holding with pressure refill valves for lift and sensing cylinder

    • Service Capacities

      Hydraulic tank 50 litre
      Fuel tank 100 litre
      Engine coolant 17 litre
      Engine oil 13.5 litre
      Transmission 16 litre
      Middle axle or Rear axle
      (Differential)      		 14.5 Litre for each axle
      Middle Axle or Rear Axle
      (Final Drive)      		 1.5 litre (On each wheel end)

    • Optional Fitments

      Ripper 5 tyne

    • Brakes

      Service Brake type Foot operated hydraulically actuated oil immersed disc in middle axle
      Parking brake type Hand operated, mechanically, actuated Caliper Brakes on middle axle

    • Steering

      Type Power Steering
      steering Valve Load sensing with priority valve 200 cm3 (cubic centimetre)
      Other feature Emergency steering in case of pump failure

    • Electrical

      System Voltage 12 V
      Battery Rating 12 V, 100 AH
      Alternator type 12 V, 90 amphere

    • Front Axle

      Type None Driven, Steerable Central Pivoted
      Loading Capacity(TON) 8

    Disclaimer
    Technical specifications, features are subject to change without prior notice. Images used are for representative purpose only
    Accessories shown may not be a part of the standard product. Actual colors may wary. E&O.E
    All dimensions are variable within +/-5℅. For further details on warranty, please visit your nearest dealer.
