Mahindra Motor Grader - RoadMaster G80
In a developing country like India, 75% of roads are either expansion projects or rural/semi urban plans where productivity is duly optimized. With a year-long, in-depth study of Indian roads and its infrastructure, 20 000+ days of product development, and 6000+ hours of extensive testing in various locations across the country, Mahindra RoadMaster G80 is the most optimized machine to help build a developing India.
HYDRAULICS
New and improved hydraulic pump for smooth performance. Higher maximum pressure around 20 MPa for more power on blade. Bigger size of 26+26 cm3 gear pump for increased per-hour productivity.
BLADE RANGE
Higher Rotation angle of around 50° from the transverse of the vehicle provides faster grading in heavy material. Blades easily accommodate between tyres while the machine is travelling. This helps in a smooth machine movement.
Differential Lock
100% Mechanical Differential Lock helps in higher power generation and equal distribution of motion in the rear tyres. Ensures better performance in grading and is useful on muddy, marshy soils.

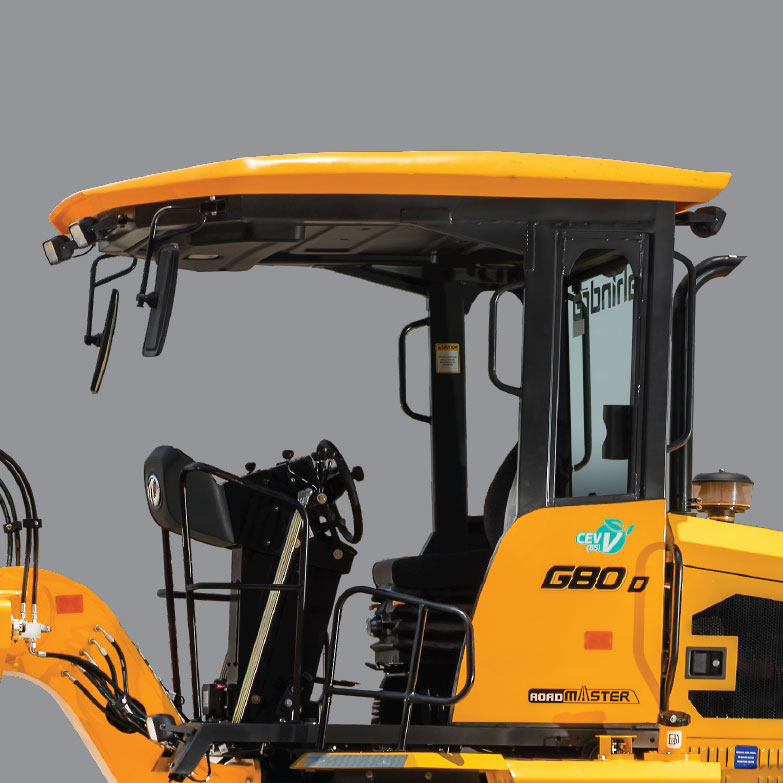

CONVENIENCE & COMFORT
Mahindra believes that the most important part of the machine is the person operating it. That’s why we have worked hard to make the operator experience comfortable for long hours of work. Ergonomic layout and seating – so that all controls are smooth and easy to reach.
-
ENGINE
Model G80 D Form of Air Aspiration Turbo Charged No of Cylinders 4 Bore 96mm Stroke 122 mm Displacement 3532 cc High idle rpm 2150+/-50 rpm Low ideal rpm 850+/-50 rpm Cooling system Water cooled Type of fuel Diesel Gross horse power 55 kW (74hp) @ 1950 rpm Peak gross torque 400 Nm@ 1100-1200 rpm Electrical system voltage 12 V -
Operating Specification
Gross vehicle weight 7738 FAW 3196 RAW 4542 Speed @ gear (kmph) Forward Reverse 1st 4.5 to 5.5 5.0 to 6.5 2nd 6.5 to 8.0 8.0 to 9.5 3rd 14.5 to 16.5 4th 29.0 to 32.5 Turning radius outside tyre R1 10 m Steering angle inner wheel 45° Steering angle outer wheel 32° -
Moldboard
Base Length of MB 3000 mm Thickness of Moldboard 16 mm Blade Height H19 516 mm -
Cutting Edge (Blade)
Standard Length of Cutting Edge WB 2600 mm
{3 piece cutting edge}
{1100 + 1100 + 400}Standard length of cutting edge
with side extensionWB* 3000 mm
{4 piece cutting edge}
{1100 + 1100 + 400+ 400}Width of Cutting Edge 152 mm Thickness of Cutting Edge 16 mm -
Dimensions (IN MM)
Wheel Base L3 5050 mm Distance- Front axle to Moldboard
Blade baseL12 1691 mm Transport length L1 7360 mm Minimum Ground Clearance H4 386 mm Max vehicle height H1 3300 mm Track width- Front W3F 1674 mm Track Width Rear W3R 1739 mm Width- outside front tires W1F 2021 mm Width- outside rear tires W1R 2207 mm -
Blade Range
Circle rotation angle AB 500 from transverse of vehicle Circle drive Hydraulic cylinders with no
end mechanical stoppersBlade side shift (LH/ RH) W15 513 mm Blade tilt angle/ Bank cut angle
(LH/RH) at ground level measured
on bladeA9 200 / 150] Blade tilt angle/ Bank cut angle
(LH/RH) at ground level measured
on drawbarA9’ [25.60 / 200] Blade pitch angle at ground line A11 Forward 400
Backward 50Blade without extension outside
front tyre with blade positioned
parallel to wheel axisW9 289.5mm Blade outside
front tyre with blade positioned
parallel to wheel axis‘W9 489.5mm Blade lift at normal blade pitch angle H20 395 mm Max blade cut depth below ground at nominal blade angle D 300 mm Attachment oscillation angle E Upward 10 0
Downward 15 0 -
End Bit
Width C 200 mm Thickness 16 mm Blade Pull force (Kgs ) 27 kN Blade Down force (Kgs) 27 kN -
Front Axle
Type Non Driven, Steerable, Central Pivoted -
Rear Axle
Type Driven, Non Steerable, Rigid -
Tyres and Wheels
Front Tyre 13 x 24-12 PR Rear Tyre 17.5 x 25-16PR -
Tyre Pressure
Front / Rear 304kPa -
Transmission
Model Name Carraro 4WD Transmission Gear Ratios Forward / Reverse 1st 5.603 / 4.643 2nd 3.481 / 2.884 3rd 1.585 / 1.313 4th 0.793 / 0.657 -
Hydraulics
System Open Centre Pump Type Fixed Displacement
Tandem Gear Pump
26+26 cm3 (cubic centimetre)Max Pump Flow rate 96 lpm @ 1950 rpm Max Working pressure 210 bar Refill qty 50 litres System Capacity 70 litres Other Feature Load Holding with pressure refill valves for lift and sensing cylinder -
Service Capacities
Hydraulic tank 50 litre Fuel tank 100 litre Engine coolant 17 litre Engine oil 13.5 litres Transmission 16 litre Middle axle or Rear axle
(Differential)14.5 litre for each axle Middle Axle or Rear Axle
(Final Drive)1.5 litre (On each wheel end) -
Brakes
Service Brake type Foot operated hydraulically actuated oil immersed disc in middle axle Parking brake type Hand operated, mechanically,Parking Brake type actuated Caliper Brakes on middle axle -
Steering
Type Power Steering steering Valve Load sensing with priority valve 200 cm3 (cubic centimeter) Other feature Emergency steering in case of pump failure -
Electrical
System Voltage 12 V Battery Rating 12 V, 100 AH Alternator type 12 V, 90 amphere
Disclaimer
Technical specifications, features are subjected to change without prior notice. Image used are for representative purposes only.
Accessories shown may not be a part of the standard product. Actual colours may vary. E & O.E.
All dimensions are variable within +/- 5%
Standard Exclusions Apply. For further details on the warranty, please contact your dealer.
