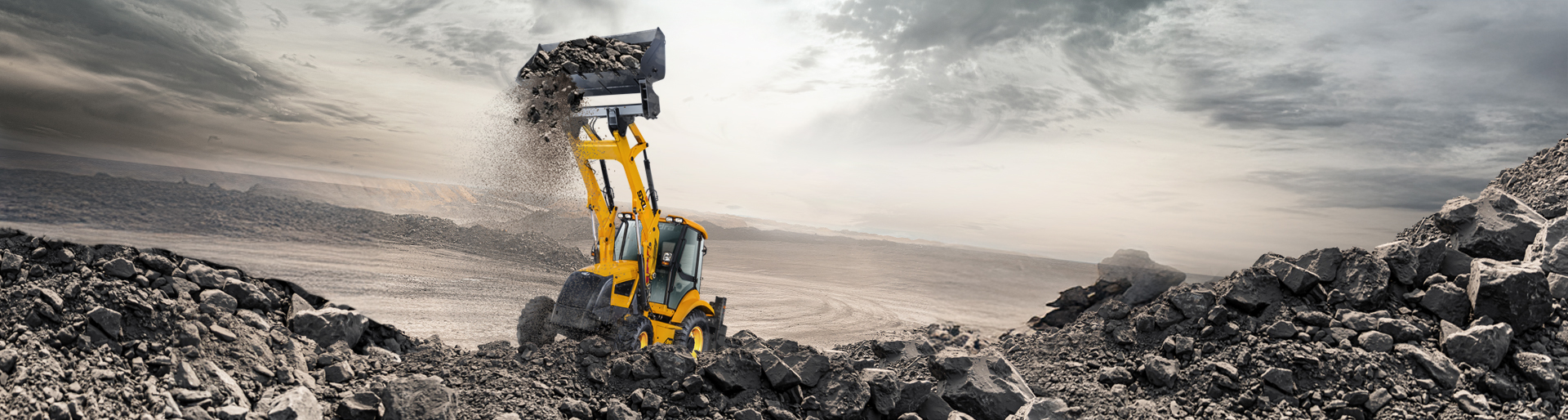

Mahindra EarthMaster - Backhoe Loader SXL Features

In a remarkable stride towards innovative technology, Mahindra is proud to introduce the latest breakthrough in the Backhoe Loader category – the EarthMaster SXL. This cutting-edge creation stands as a testament to Mahindra's unwavering commitment to pushing boundaries and setting new industry standards.

With a commanding 74 HP CRDI Mahindra engine at its core, the EarthMaster SXL is poised to redefine performance benchmarks. Its meticulously engineered design brings forth not only raw power but also exceptional fuel efficiency that stands unrivaled in its class.


  • High Productivity with Bigger Loader (1.1 m3) and backhoe buckets (0.27 m3).


  • 2 mm thicker plates than usual for applications where the strength is needed.
  • More load bearing capacity to front axle with 63 mm thick beam, helps machine to do heavy work in loader application.
  • Ideal for all-weather condition like sub-zero temperature in the Himalayas, due to high impact resistant structural Grade of steel (350 C) for all critical components


  • Better Loader speed & performance due to higher flow-handling capacity and less pressure losses.
  • Better Fuel efficiency due to less load on engine with lowest hydraulic refills required.
  • Lower per-hour maintenance cost due to 3000 hours hydraulic oil change interval. Leading to higher savings.
  • Improved Performance with Optimised Hoses and Tubes, higher flow capacity, loader control valve, and optimised hydraulic circuit to minimise pressure losses which is Ideal for rugged Indian site conditions.


  • Best-in-class power and efficiency due to impressive horsepower of 74HP @2200 rpm
  • Optimal performance in diverse applications due to engine's peak gross torque of 345NM @1200-1500 rpm
  • Engine

    Make Mahindra
    Model NEF 3.5L
    No. of Cylinders Nos. 4
    Displacement cc 3532
    Gross Horse Power HP @ RPM 74HP @ 2200 rpm
    Peak Gross Torque Nm@rpm 345NM @1200-1500 rpm
    Aspiration Turbocharged Intercooled
  • Refill Capacities

    Hydraulic Tank L 50 L (system - 100 L)
    Fuel Tank L 140 L
    Engine Coolant L 17 L
    Engine Oil L 13 L (system - 13.7 L)
    Transmission Oil - 2WD L 10.2 L (system - 19.2 L)
    Transmission Oil - 4WD L 10.2 Litres
    Rear Axle L 12 L (system - 22 L)
    Rear Axle Oil L 17.1 L
    Front Axle Oil L "2WD - N.A. / 4WD - 9.1 ltrs"
    Brake Reservoir Oil L N.A.
  • Hydraulic System

    Type Open Center
    Pump Type Gear Pump (52 cm3)
    Pump Capacity LPM @ RPM 117 LPM @ 2250 rpm
    System Pressure bar 250 Bar
  • Steering System

    Type Priority Valve
    Working Pressure bar 145 Bar
  • Loader Performance

    With Std Bucket with 6 in 1 Bucket (Optional)
    Dump Height mm 2712 2798
    Load Over Height mm 3266 3267
    Pin forward reach mm 234 234
    Reach at Ground mm 1365 1243
    Max reach at full height mm 1114 991
    Max reach at full height (bucket dumped) mm 725 637
    Below ground level dig depth mm 110 109
    Rollback at ground deg 43 43
    Dump Angle deg 44 44
    Reach at Ground mm 1365 1243
    Bucket Breakout Force Kgf 6243 6243
    Loader Arm Bearkout Force Kgf 5594 5594
    Shovel cum 1.1 1.1
    Pay Load Kg 1980 1980
  • Transmission

    Make Carraro
    Features Synchromesh Synchroshuttle
    Speed "4 Speed(4 Forward/4 Reverse)"
  • Rear Axel

    Make Carraro
  • Speed Gear

    1st Forward / Reverse km/hr 5.43 / 5.66
    2nd Forward / Reverse km/hr 8.84 / 9.11
    3rd Forward / Reverse km/hr 19.20 / 20.00
    4th Forward / Reverse km/hr 38.37 / 39.97
  • Dimensions

    With Std Bucket with 6 in 1 Bucket (Optional)
    Overall Length mm 5972 5850
    Wheel Base mm 2176 2176
    Overall Heigh bucket raised mm 3253 3253
    Width over Bucket mm 2404 2456
    Ground Clearence - front axle mm 350 350
    Weight (6in1 / std bucket) Kg 7467 (IT) 7552 (IT)
  • Tyres

    Front Tyre "9x16-16PR -2WD 12.5/80 -18 - 12PR"
    Rear Tyre 16.9X28-12PR (IT Tyre)
  • Turning Circle Diameter

    Outside Bucket (Inner wheel Braked) mm 4494
    Outside Wheels (Inner Wheels Braked) mm 3091
    Outside Bucket(Inner wheel not Braked) mm 5750
    Outside Wheels(Inner Wheels not Braked) mm 4400
  • Electricals

    Battery Capacity v 12 V, 100 Ah
  • Counter Weight

    Capacity Kg 1700
  • Technical specifications, features are subject to change without prior notice. Images used are for representative purpose only. Accessories shown may not be a part of the standard product. Actual colors may wary. E&O.E. "Standard exclusions apply. For further details on warranty, please visit your nearest dealer.
  • * According to government approved independent agency, under manufacturer standard PER/VEH/21 certified at 1450 r/min.
  • #When compared to a standard excavation cycle.
  • ##Value measured under specific measuring conditions.
